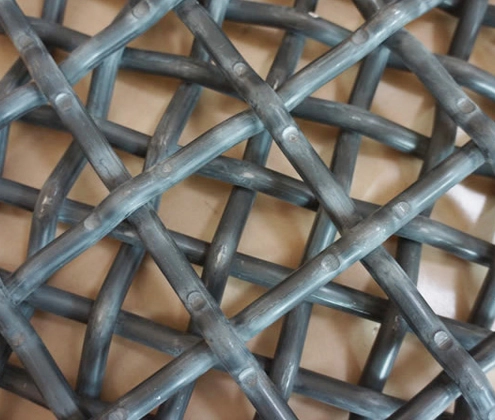

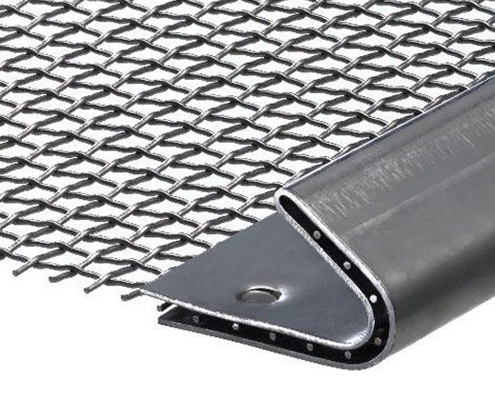

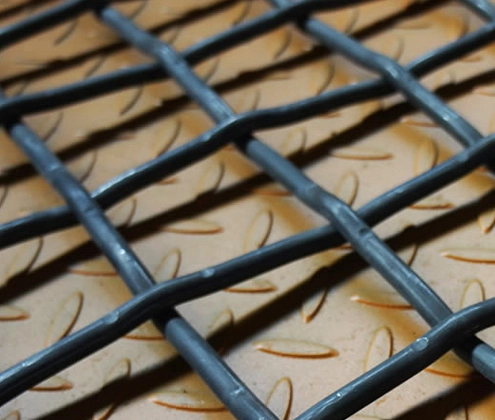

lat top screens are made of round and shaped plain woven wire. The wire is punched on one side of its surface and the other side of the wavy shape is woven to obtain a flat and uniform surface. The structure is very strong, so it can withstand heavy loads.
Flat top screen material: black wire, spring steel wire, manganese steel wire, stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm—12.5mm.
Mesh size: 1mm—100mm.
Hole type: square, rectangular, long slot.
1. Mesh width: up to 2200 mm
2. Mesh length: up to 5,000 mm, or up to 50 meters in rolls
3. Dimensional tolerance of length and width: -0 mm / +1 mesh width (conventional)
4. Fixed sizes with length and width tolerance of +/-2 mm are available on request
1. Plain weave.
2. Pre-crimp .
3. Flat top.
4. Intermediate crimp.
5. Lock crimp.
