Woven stainless steel wire mesh is used for environmentally friendly paper products such as disposable lunch boxes, paper cups, paper trays, as well as packaging seats for new electrical products in the packaging industry, electronic component seats, tool boxes, and poultry eggs, fruit trays, and buffer packaging molds for fragile items in daily life.
Galvanized Steel Wire
Standard galvanizing: zinc layer coverage ≥60g/m², providing basic anti-corrosion, suitable for general environments.
High zinc coating: zinc layer ≥220g/m² (such as Galfan coating), corrosion resistance increased by more than 50%, suitable for high humidity or saline-alkali areas.
PVC-Coated Wire
Inner galvanized steel wire + outer PVC coating, double rust prevention, optional green, gray and other colors, beautiful and adaptable to landscape needs.
PVC thickness 0.5-1.0mm, strong weather resistance, anti-ultraviolet aging.
Stainless Steel Wire
304/316 stainless steel material, no fear of extreme corrosion environment, service life of more than 30 years, suitable for marine engineering or high-demand projects.
Parameters Specification options
Mesh size 60×80mm, 80×100mm, 100×120mm, 120×150mm
Wire diameter range 2.0mm - 4.0mm (customizable ±0.2mm tolerance)

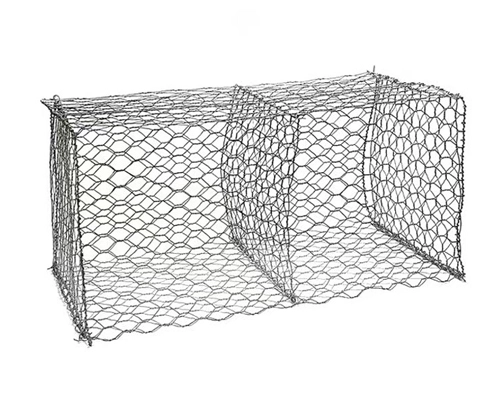

Cage size 2×1×1m, 3×1×1m, 4×1×1m (length×width×height)
Roll width 1m - 4m (standard roll length 30m, can be divided and customized)
GW-60: mesh 60×80mm, wire diameter 2.7mm, economical flood control cage
GW-PVC100: PVC plastic coating + 100×120mm mesh, dedicated to landscape engineering
SS-316: 316 stainless steel wire, mesh 80×100mm, marine engineering protection
Super durability: galvanized/PVC/stainless steel material combination, adaptable to -30℃ to 120℃ environment, life span 10-30 years.
Flexible construction: folding transportation, on-site assembly, support special-shaped structure design, saving labor and time costs.
Ecological and environmental protection: permeable structure promotes plant growth and meets green engineering standards.
High cost performance: 20%-40% lower cost than concrete structure, and maintenance cost is extremely low.
Water conservancy projects: river bank slope protection, reservoir reinforcement, flood control dam.
Transportation infrastructure: road/railway slope protection to prevent soil erosion.

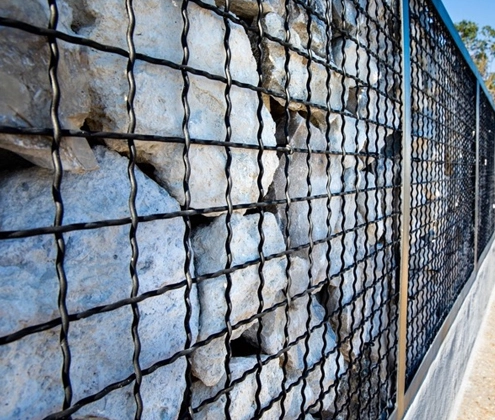

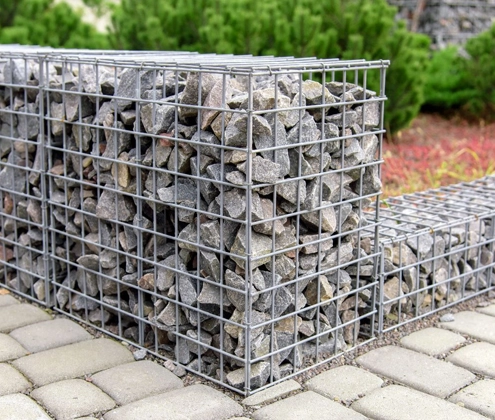

Landscape design: retaining walls, flower bed fences, garden landscaping, taking into account both function and beauty.
Mine restoration: tailings dam reinforcement, landslide control.
1 Customized production: customized mesh, wire diameter, size and material according to drawings or needs.
2 Global logistics: provide pallet/wooden box packaging, support sea/air transportation, and provide export certification (ISO 9001, CE).
3 Technical consultation: provide free construction plan guidance and load calculation support.
